Help › Hardware Setup

Hardware Setup Diagrams

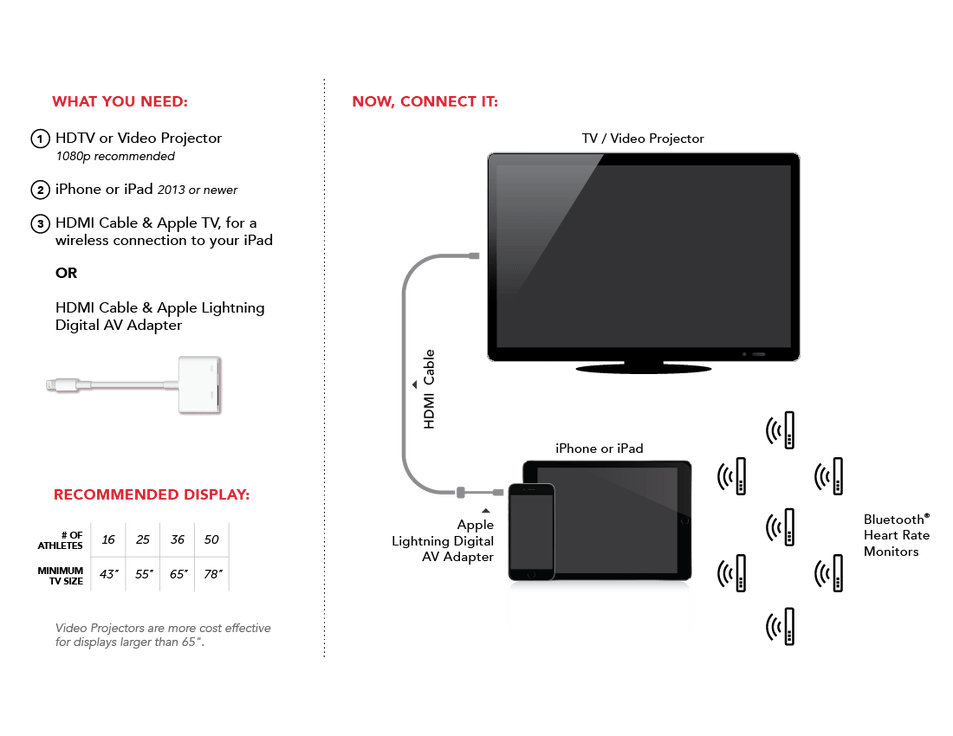

Installation for 1-12 Simultaneously Connected Heart Rate Monitors (small classes and personal trainers)

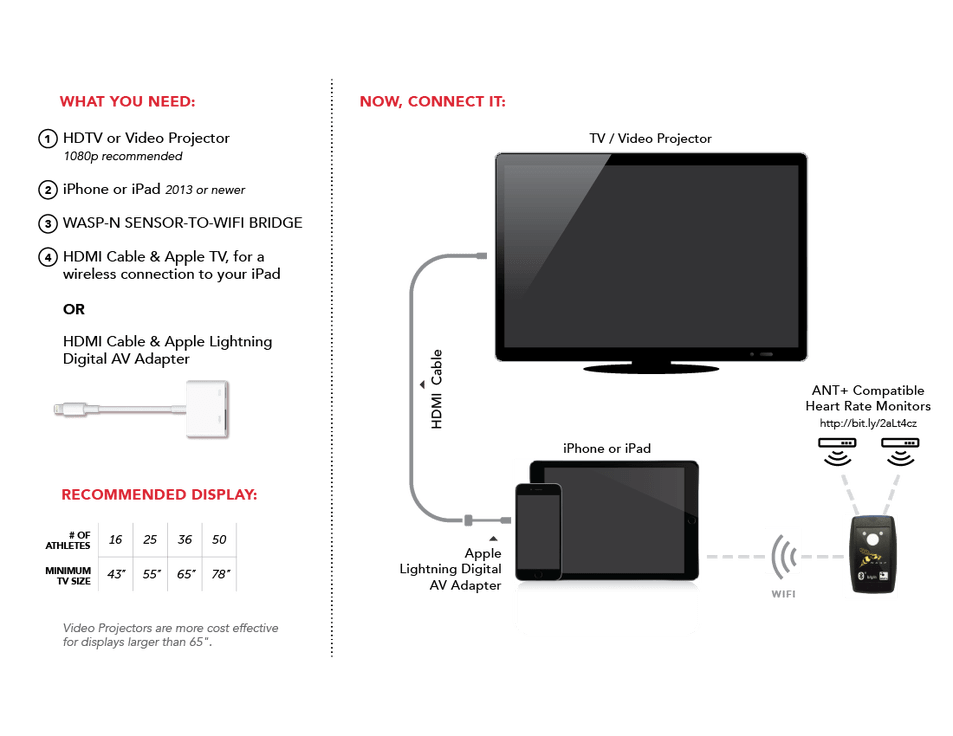

Installation for 13-100 Simultaneously Connected Heart Rate Monitors (large classes)
Download the printable PDF

If you need to connect between 13 and 100 monitors, you will need to purchase our antenna/receiver by submitting a request through this link.

  • ANT+ only antenna/receiver: $200 US or $15 US/month
  • ANT+ & Bluetooth antenna/receiver: $275 US or $20 US/month

We recommend using the two-week free trial with just your iPhone/iPad and a Bluetooth heart rate monitor before expanding to the antenna/receiver. An active paid OnBeat subscription is required when renting the antenna/receiver.
